Product Description
Legend X Titan Service Body
The ultimate mobile workstation for commercial fleets, mobile field mechanics, and heavy haulers. Featuring deep weather-protected tool compartments, dual-tier towing, and a heavy 4" structural steel channel backbone. Riverside Trailers provides complete drive-in, drive-out upfitting and installation across our Blackfoot, Jerome, and Caldwell, ID service centers.
Explore Titan FeaturesHeavy-Duty Workstation Architecture
Engineered to eliminate sagging and structural fatigue under maximum payload. The Titan Series pairs high-capacity service storage with uncompromised gooseneck and bumper towing capabilities.
Structural Steel Backbone
Unlike light roll-formed steel alternatives, the Titan utilizes 4" structural steel channel frame rails and 10-gauge channel crossmembers. Topped with a 1/8" steel treadplate deck and shielded in a durable high-gloss black powder-coated finish.
Frame & Deck Specs
- Main Frame Rails: 4" Structural Steel Channel
- Crossmembers: 10-Gauge Formed Channel
- Deck Surface: 1/8" Heavy Diamond Treadplate
- Headache Rack: Integrated 3 1/2" Structural Tube design
- Finish: High-Gloss Black Powder Coat (Standard)
Master-Lock Storage
Organize tools, parts, and heavy gear securely. Deep service body compartments feature heavy-duty compression latches, weather-resistant bulb seals, and a single master locking handle system on each side for fast jobsite lockdown.
Compartment Details
- Security: Dual side master locking handle system
- Latches: Flush-mount compression latches
- Seals: Automotive bulb rubber weatherseals
- Layout: Deep vertical and horizontal shelf compartments
- Option: Pull-out drawer packs for small parts

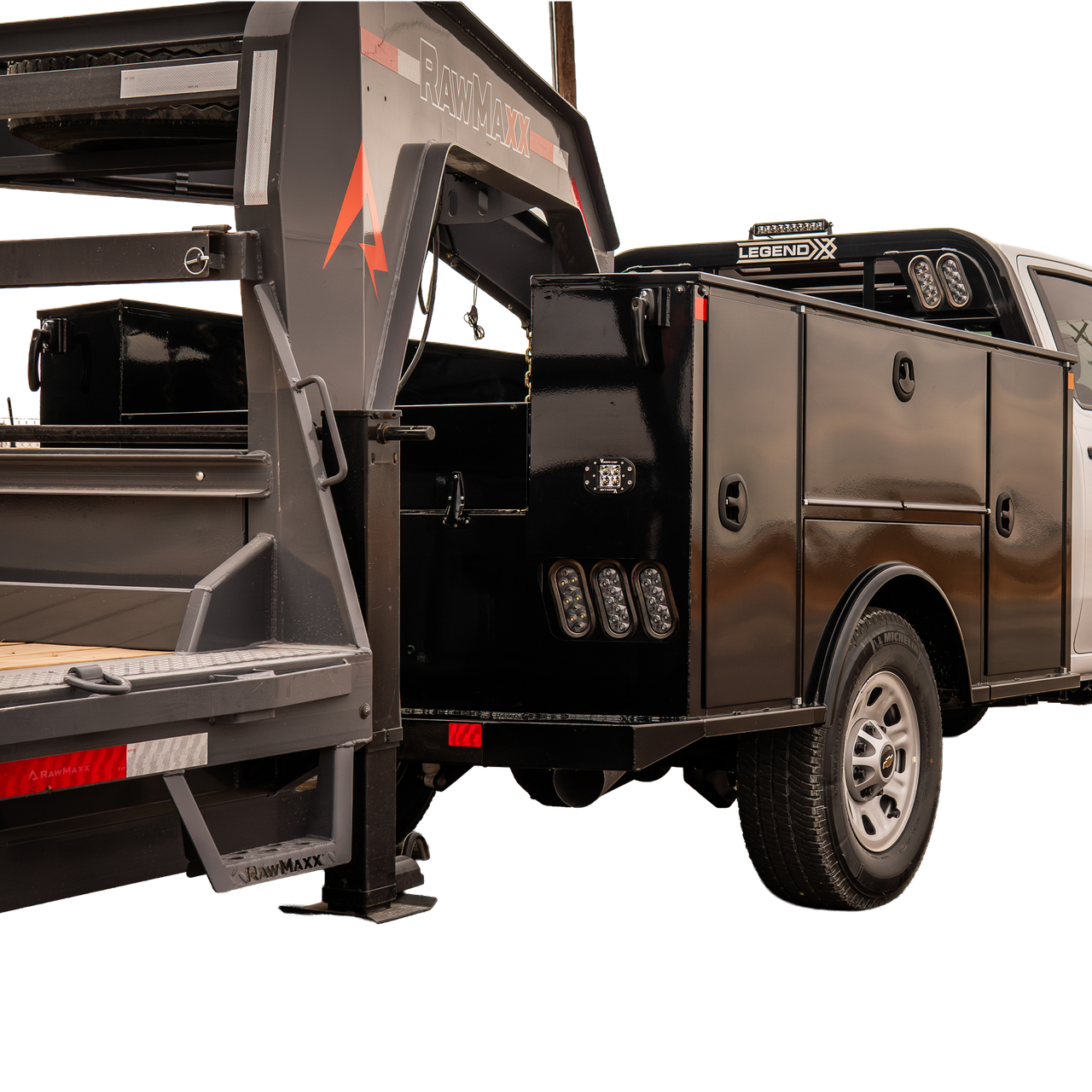

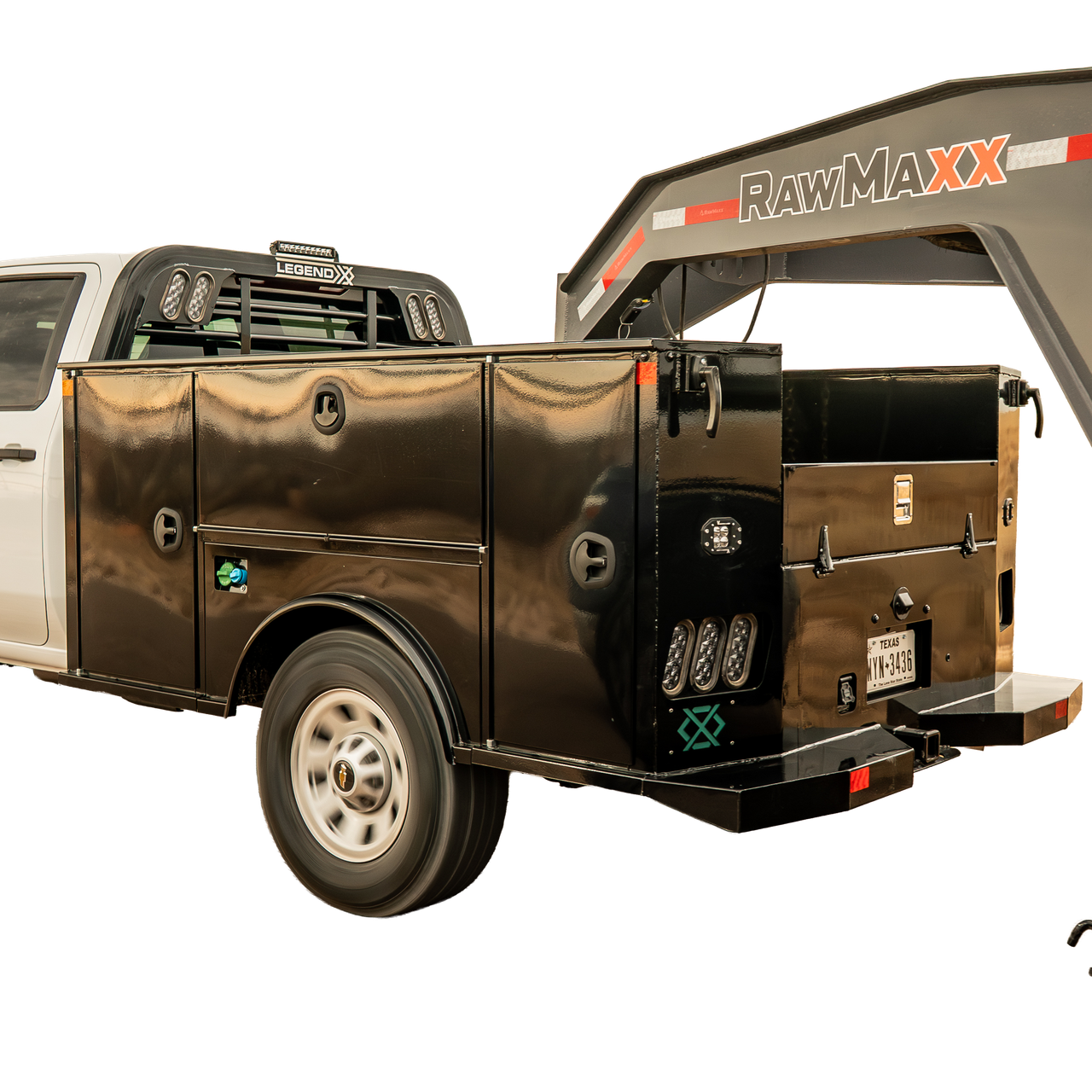

Dual-Tier Towing
Pull heavy gooseneck trailers or bumper-pull equipment without auxiliary add-ons. Comes factory-standard with a clean flush-mount B&W Turnoverball gooseneck hitch and an integrated 24,000 lb rated Class V 2.5" bumper receiver.
Towing Ratings & Wiring
- Gooseneck Hitch: Standard B&W Turnoverball (30,000 lb. Rated)
- Bumper Receiver: Integrated 2.5" Class V Receiver (24,000 lb. Rated)
- Electrical Plugs: Dual 7-way round plugs (Tailboard & Gooseneck well)
- Wiring Harness: Modular corrosion-resistant sealed harness
Titan Sizing & Chassis Fitment Guide
To guarantee a flush fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (Single Rear Wheel vs. Dual Rear Wheel).
| Bed Length | Cab-to-Axle (CA) | Wheel Config | Typical Vehicle Application |
|---|---|---|---|
| 7' 0" | 42" CA | SRW | Short Bed Pickup Box Delete (Single Rear Wheel) |
| 8' 6" | 56" – 58" CA | SRW or DRW | Long Bed Pickup Box Delete (Single or Dual Rear Wheel) |
| 9' 4" | 60" CA | DRW / Commercial | Standard Commercial Cab & Chassis Framework |
| 11' 4" | 84" CA | DRW / Commercial | Extended Commercial Cab & Chassis Framework |
*Fitment can be affected by truck generation, fuel tank configuration (single vs. dual), DEF filler neck routing, and factory safety sensors. Contact Riverside Trailers to verify exact VIN parameters across our Blackfoot, Jerome, or Caldwell locations.
Titan Service Body Details
Examine the heavy structural steel channels, flush storage compartments, integrated lighting, and towing setups up close.

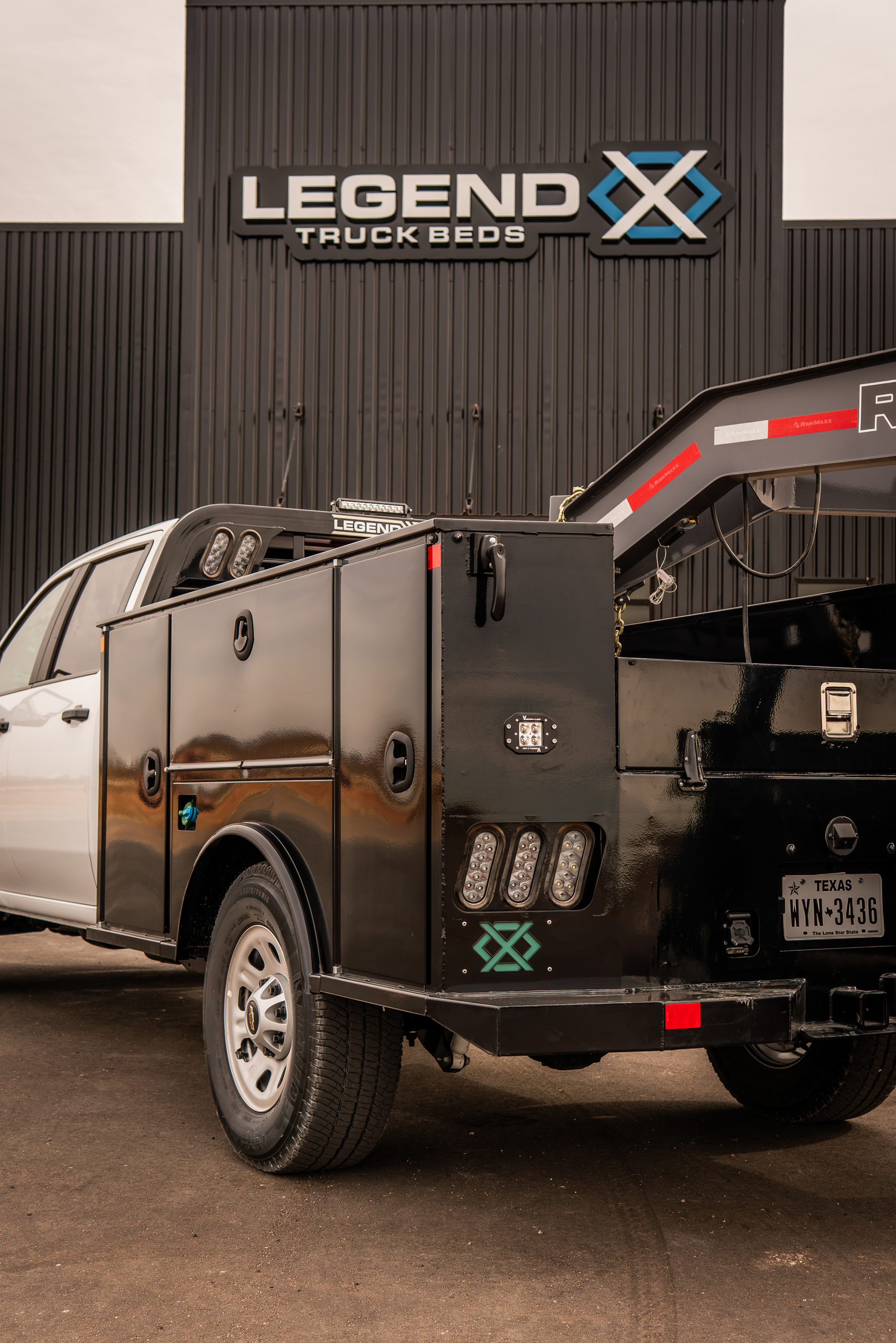

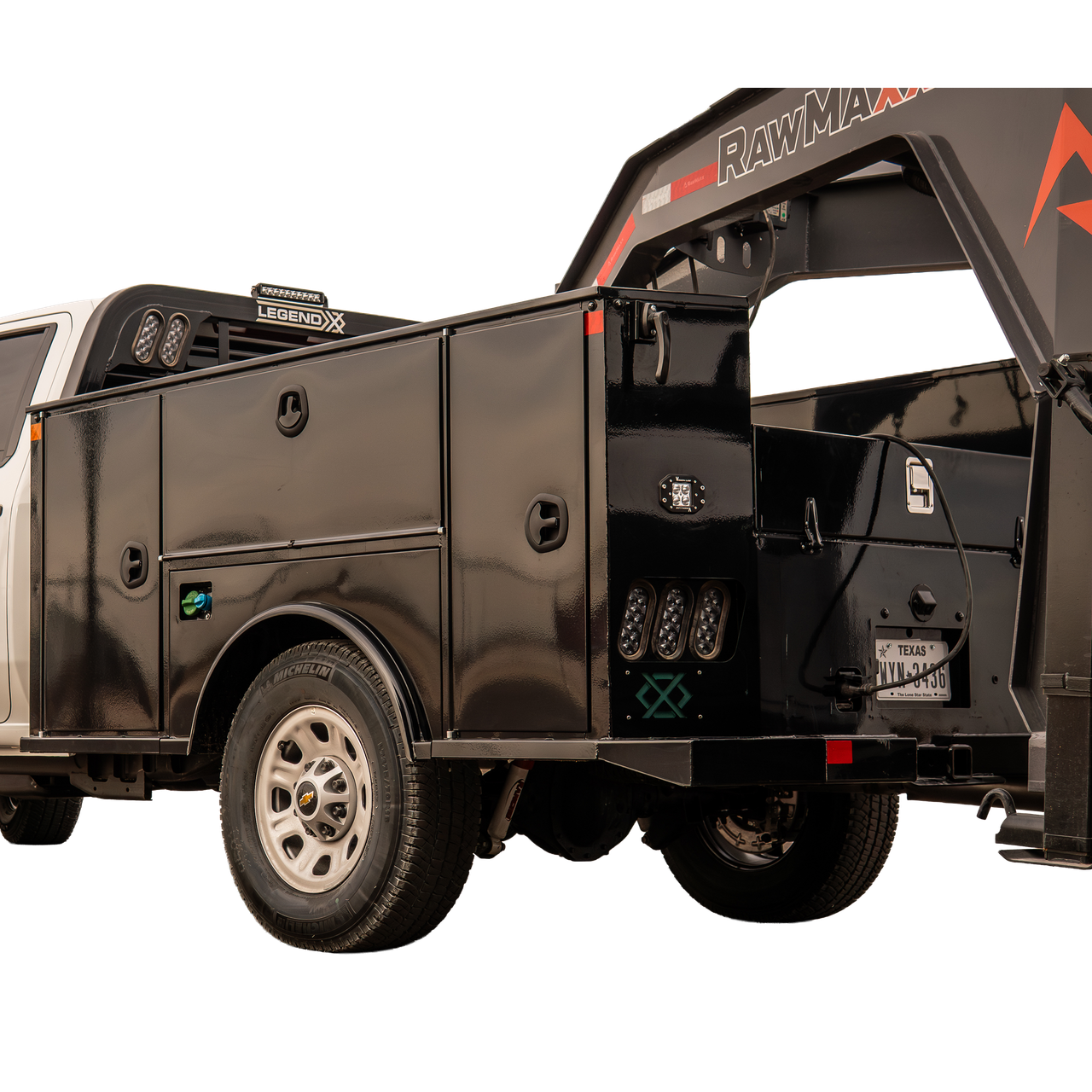

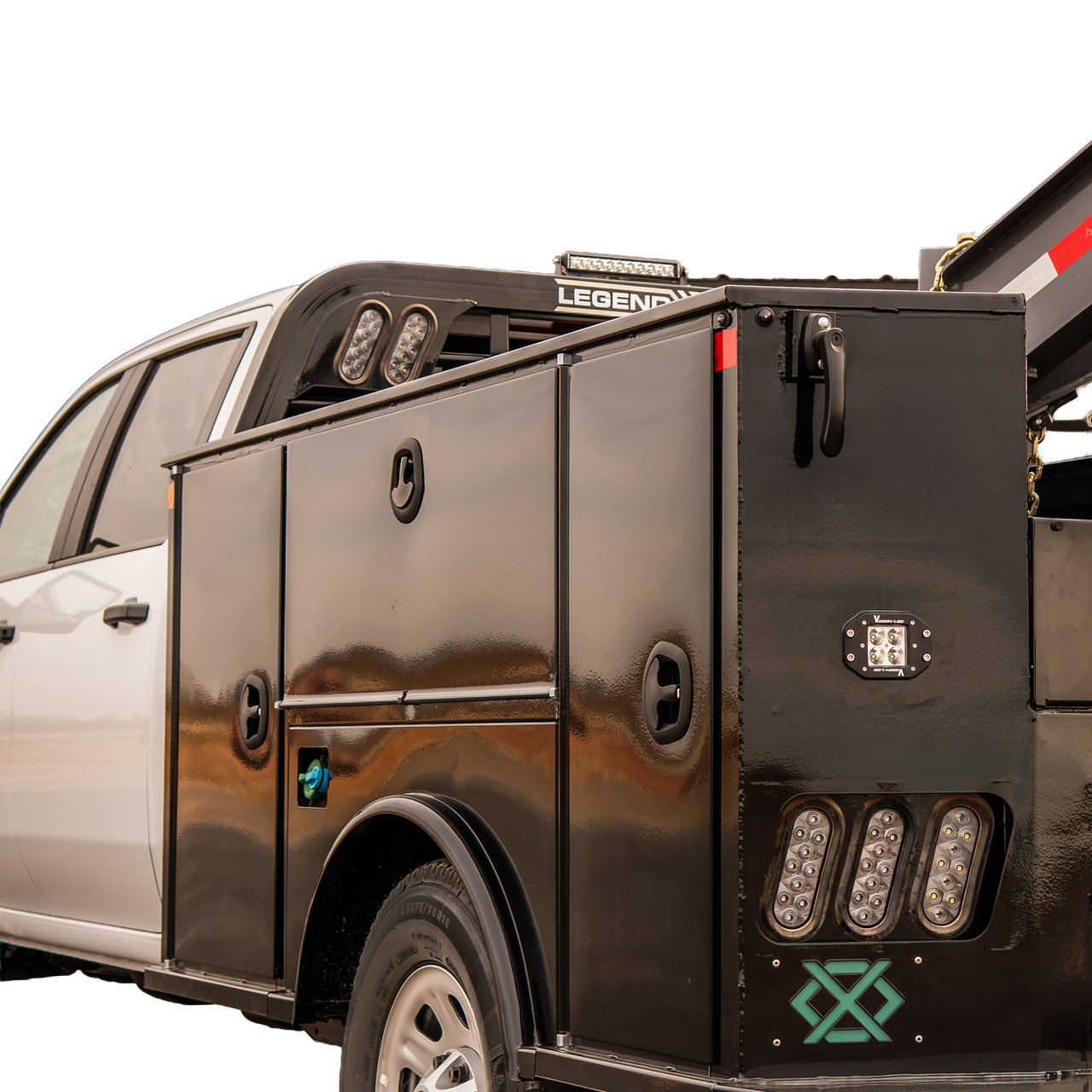

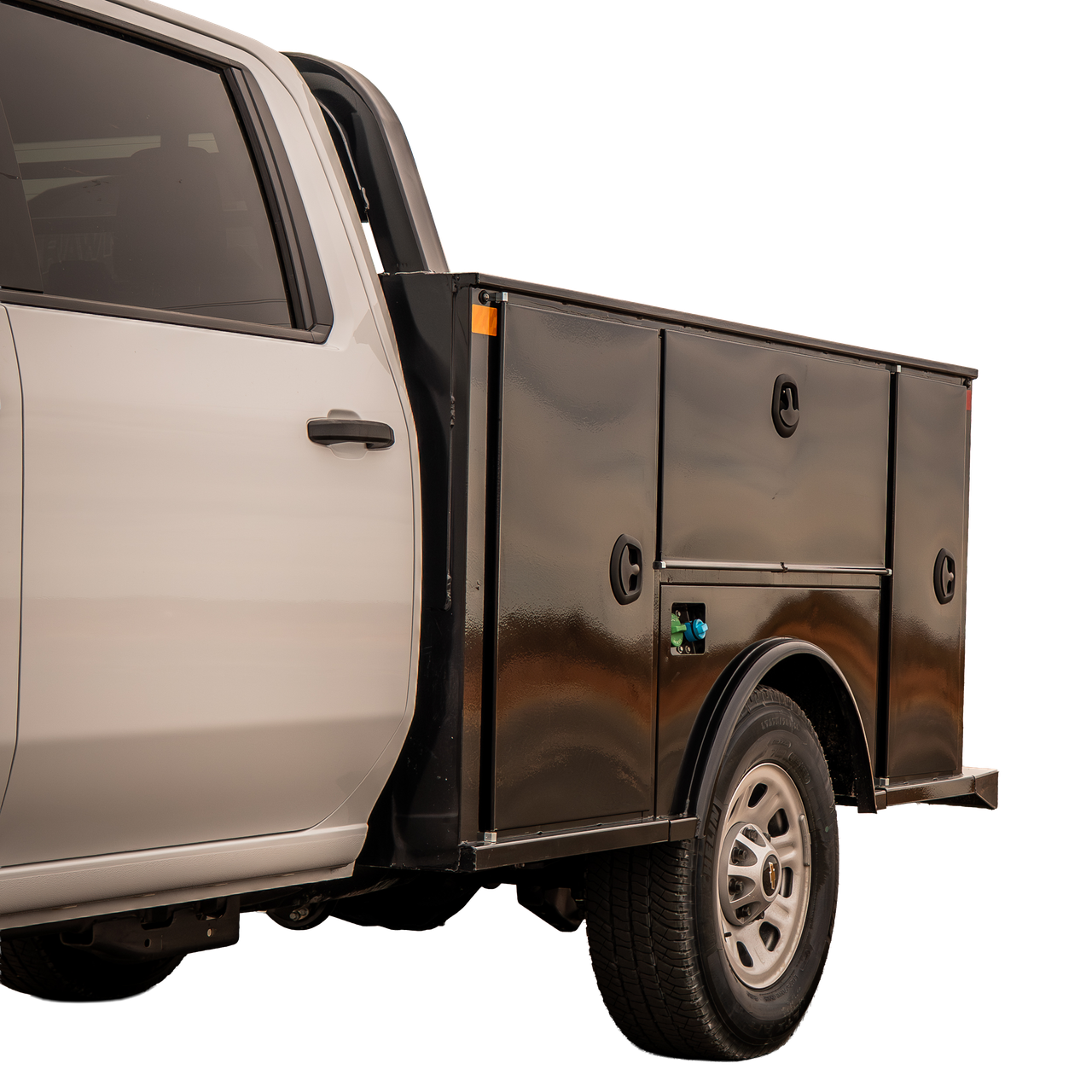

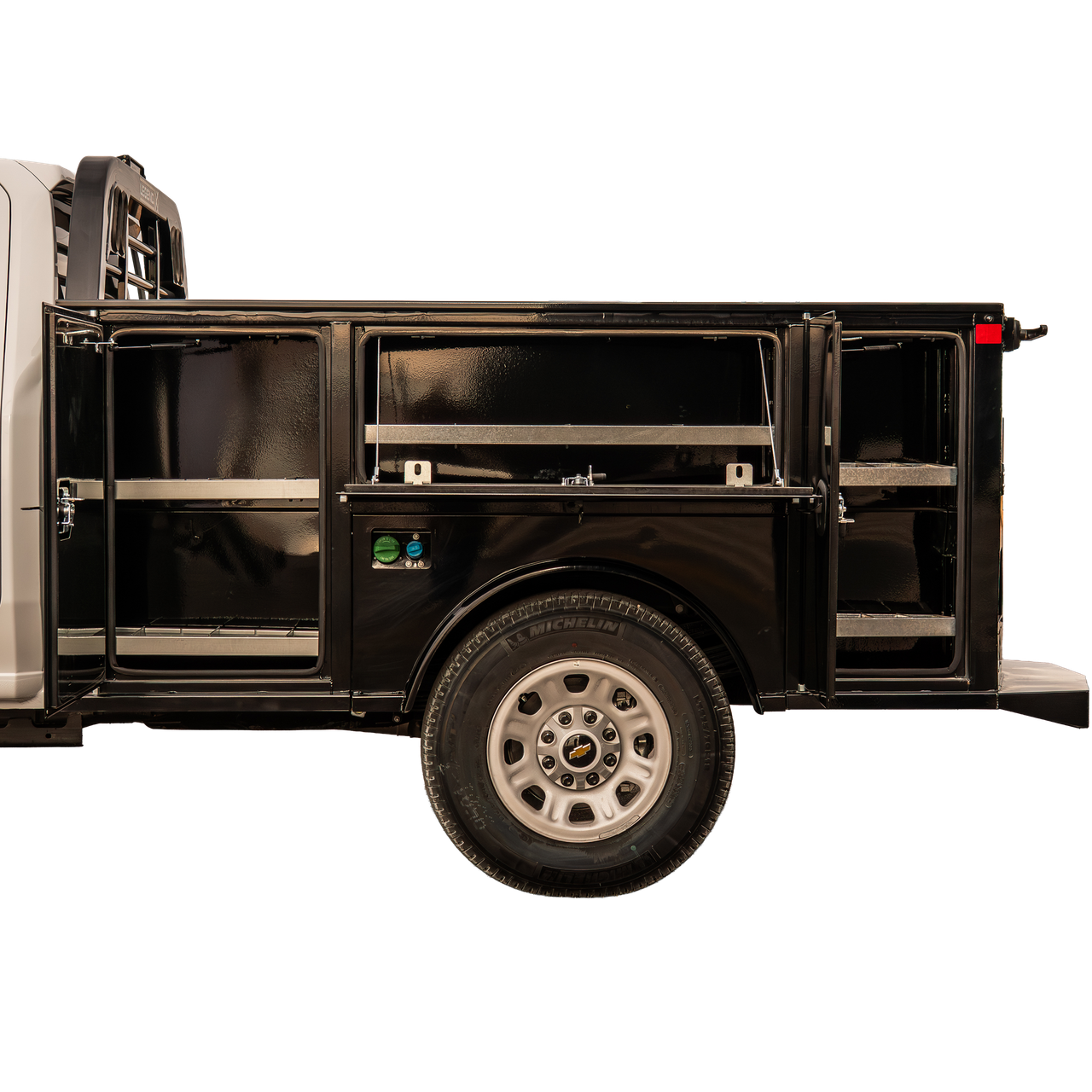

Full Skirted Service Profile
Sleek skirted sides with built-in tool compartments and wheel-well contouring.
Tube Rack & LED Light Bar
3 1/2" tube headache rack with integrated high-output LED light bar standard.
24,000 LB Bumper Hitch
Heavy-duty 2.5" Class V receiver hitch and sealed 7-way trailer wiring connection.

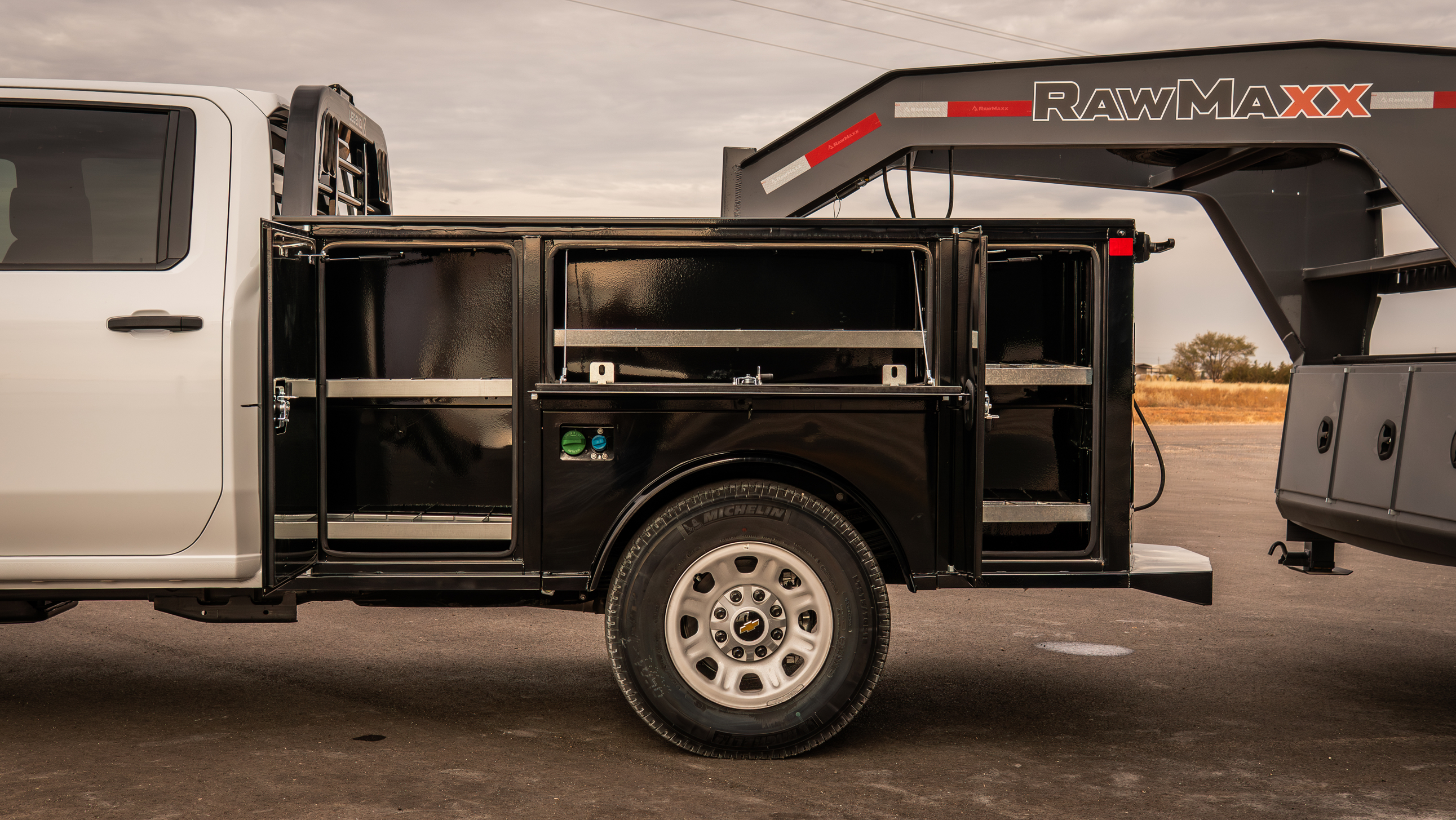

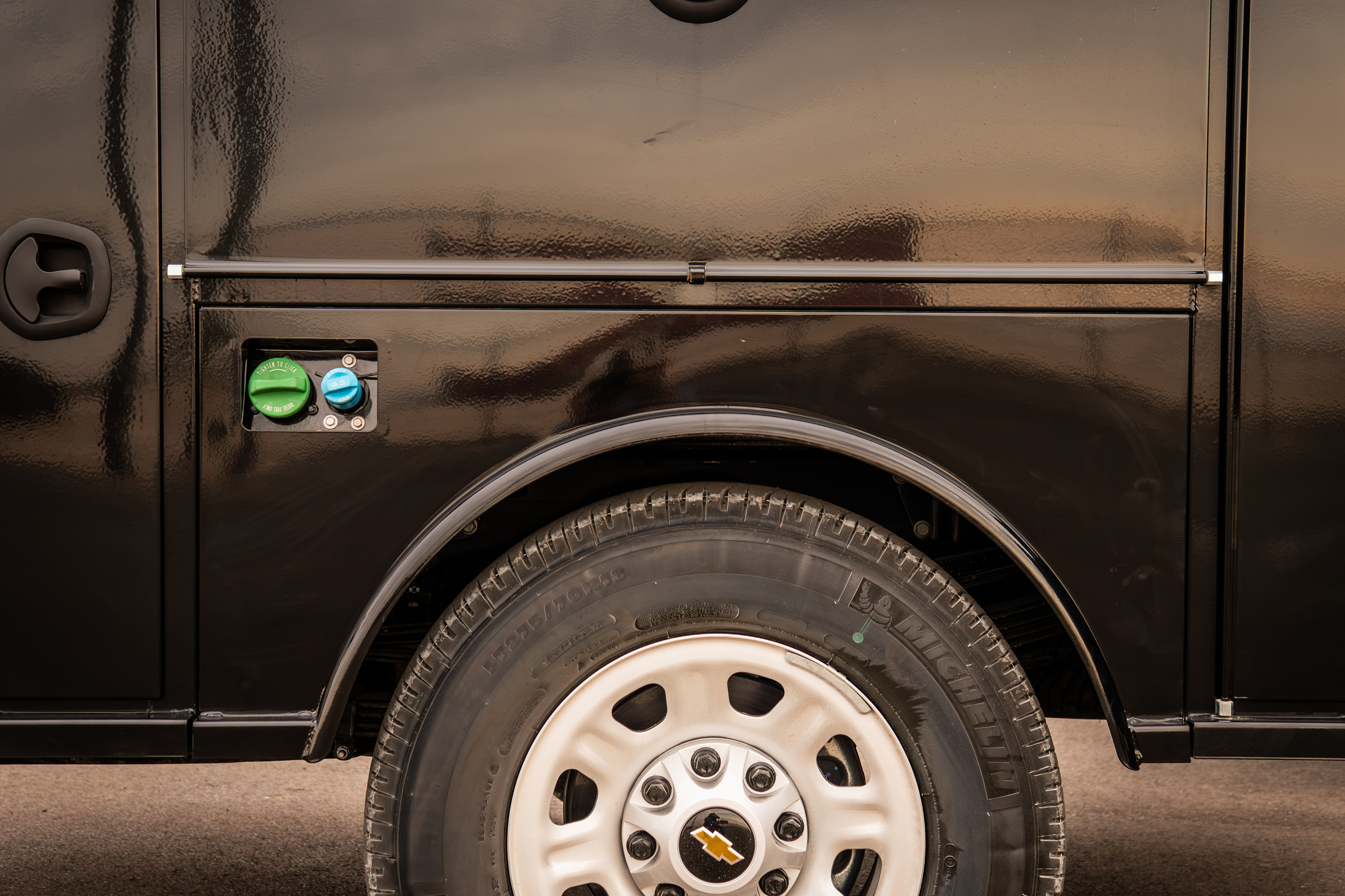

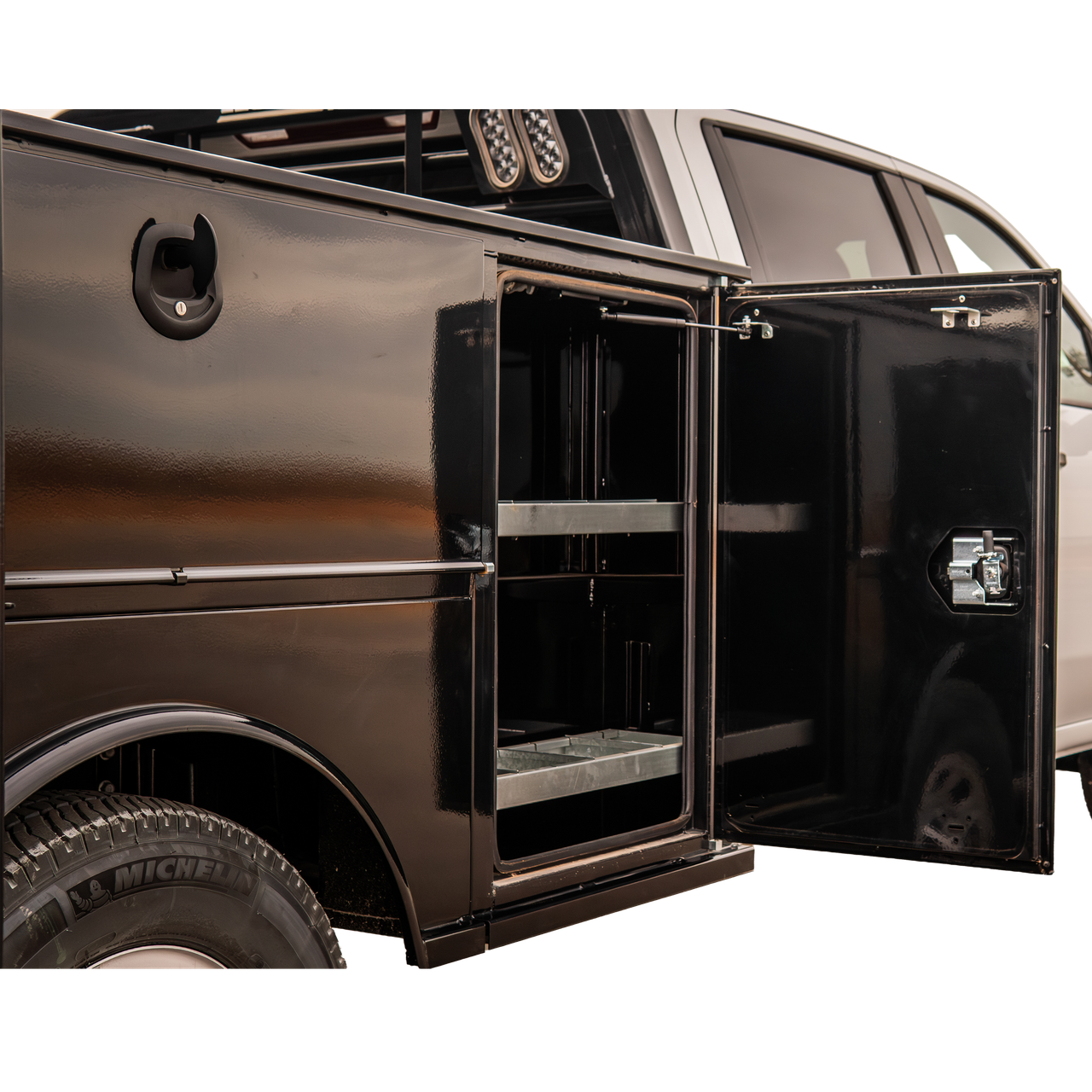

Weather-Sealed Doors
Deep storage chambers with compression latches and bulb rubber gaskets.

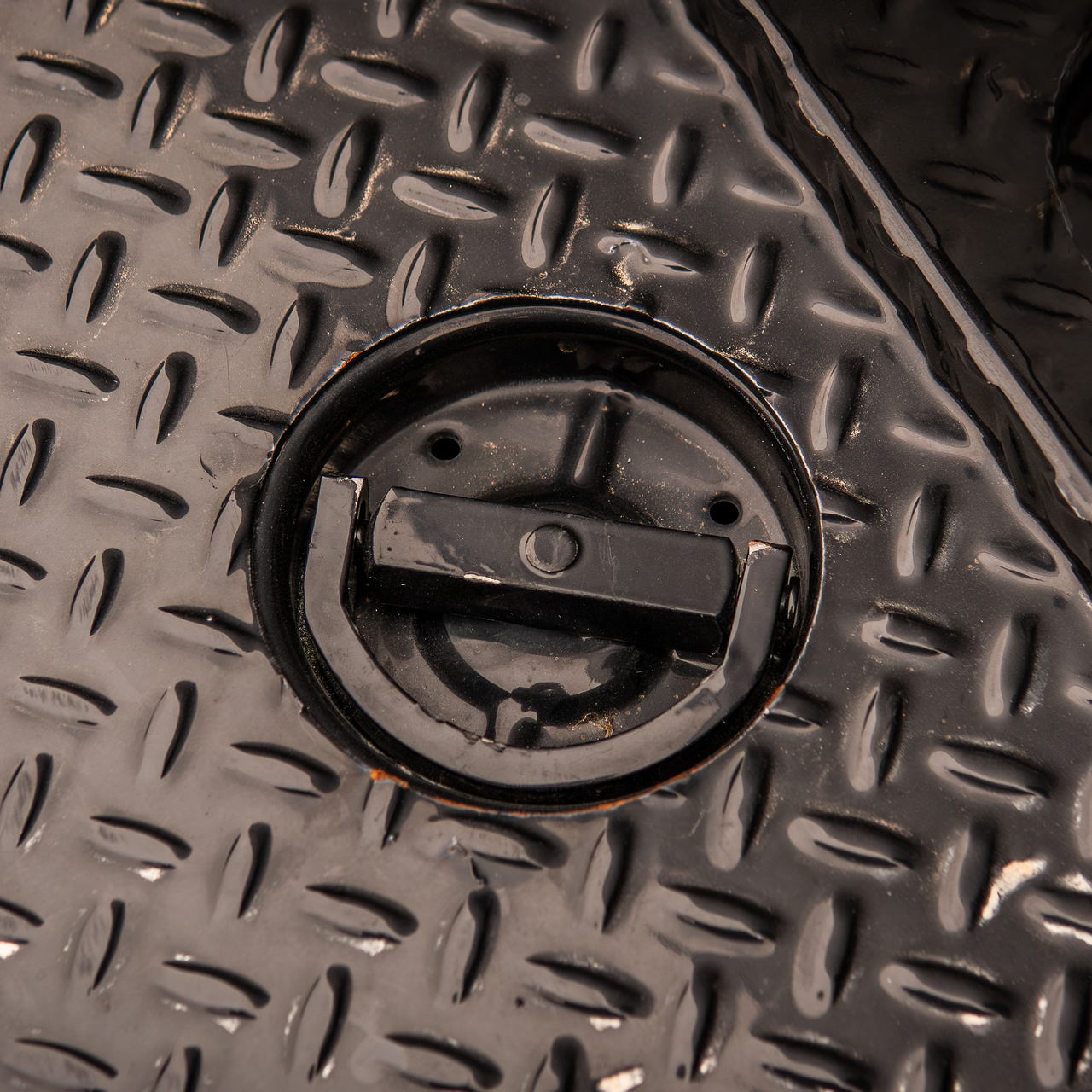

1/8" Steel Treadplate Floor
High-strength diamond treadplate deck with flush hinged gooseneck door.

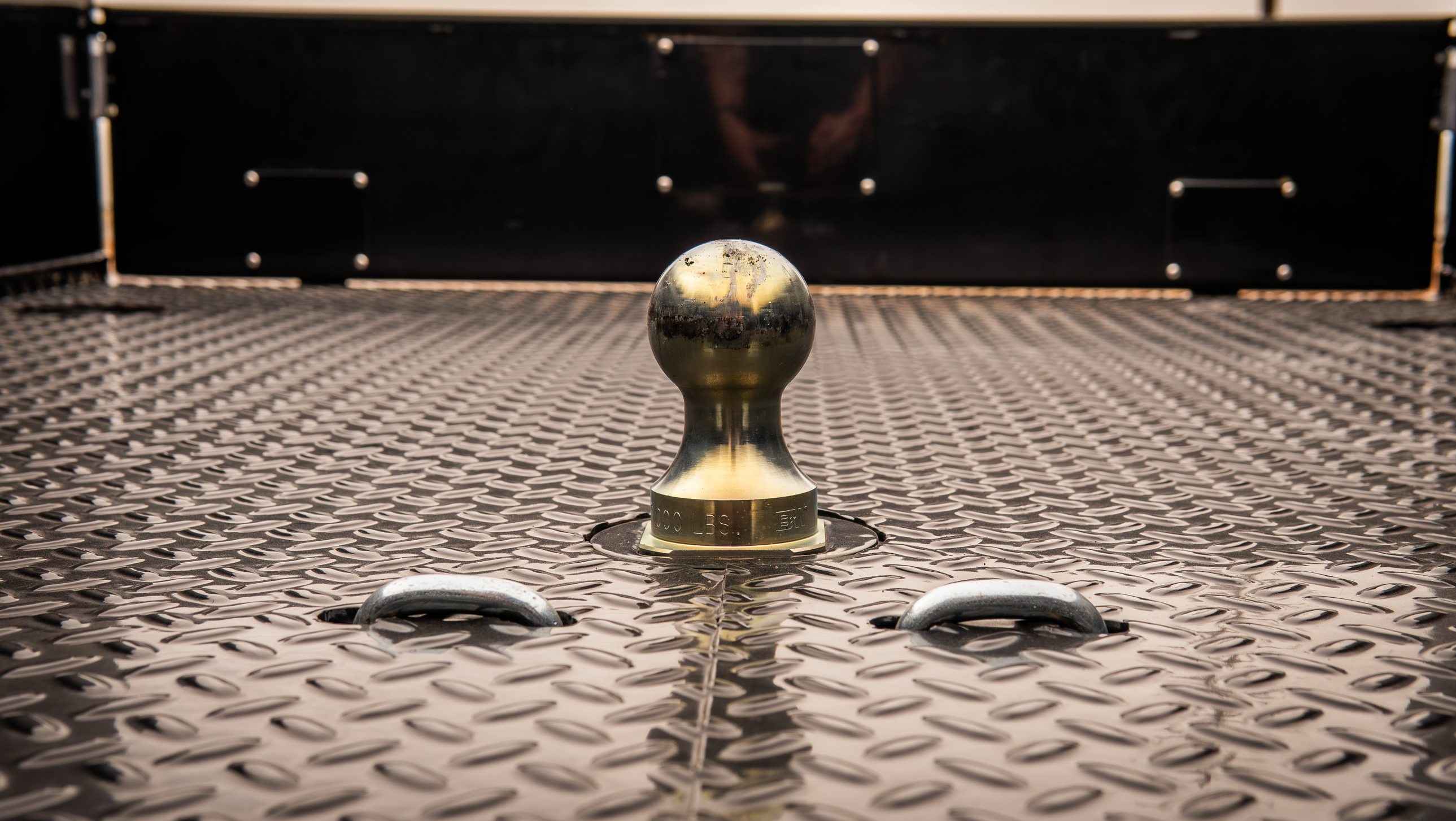

Standard B&W Turnoverball
Factory-installed 30,000 lb gooseneck ball that turns over flush when not in use.

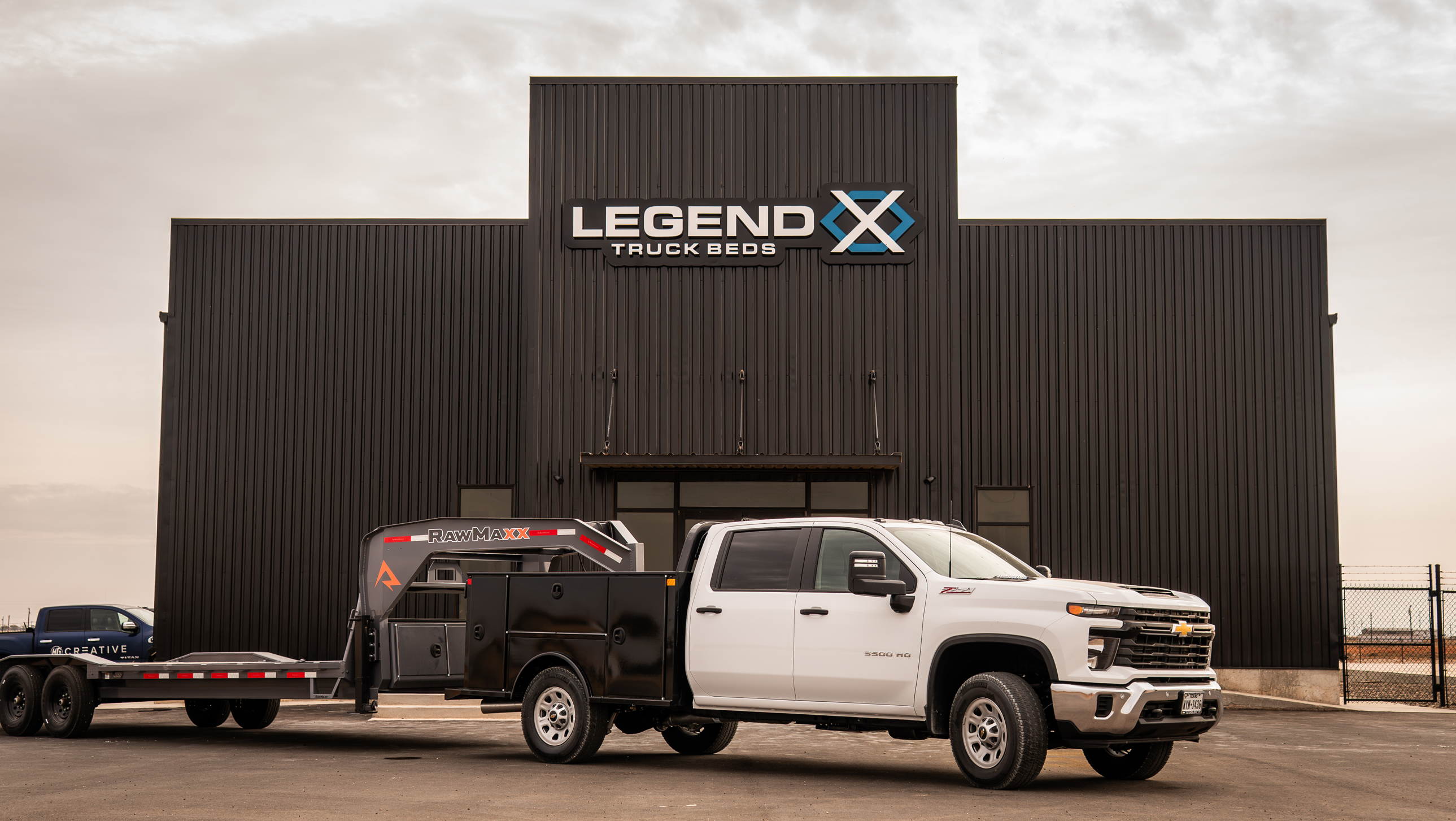

Professional Fleet Upfit
Complete drive-in, drive-out flatbed mounting available across all Riverside Trailers locations.
Professional In-House Installation
Modern trucks feature highly complex safety electronics, backup cameras, blind-spot radar, and intricate emissions systems. Across our Riverside Trailers installation facilities in Blackfoot, Jerome, and Caldwell, ID, our dedicated service bays seamlessly manage upfit requirements including backup camera relocation, parking proximity sensor integration, and Diesel Exhaust Fluid (DEF) filler neck routing.
Our experienced technicians ensure your vehicle's safety features and powertrain systems remain 100% operational before your truck hits the road.
Schedule Upfit ServiceUpfit Compatibility Highlights
- ✓ Factory Backup Camera Relocation & Wire Harness Extension
- ✓ Parking Proximity Sensor Integration in Rear Apron
- ✓ Custom DEF Filler Neck Routing & Heat Shield Deflection
- ✓ Modular Sealed 7-Way Trailer Plug Connections
- ✓ Single & Dual Fuel Tank Filler Neck Alignment
Available Factory Options & Upgrades
Customize your Legend X Titan bed to match your exact daily jobsite requirements.
3/16" Treadplate Floor
Upgrade from the standard 1/8" deck to a heavy-duty 3/16" steel treadplate floor built for concentrated point loads.
Pull-Out Drawer Packs
Maximize compartment usability with smooth sliding drawer packs to keep fittings, hardware, and small tools organized.
Custom Color Match (Special Order)
High-Gloss Black powder coat is our primary stocked finish. Custom paint-to-match options are available as a Custom Order Only. Please call to verify exact color codes and build lead times.
Fitted Mudflap Kits
Heavy-duty rubber SRW and DRW fitted mudflaps to protect your chassis and trailing cargo from highway debris.
Spare Tire Mount
Secure spare tire mounting bracket designed for the front headache rack or service deck (Standard on Cab & Chassis models).
Frequently Asked Questions
Are Legend X Titan beds compatible with factory backup cameras and parking sensors?
Yes. When installed at any Riverside Trailers service bay (Blackfoot, Jerome, or Caldwell), our service technicians utilize camera relocation harnesses and drill precise mounting ports in the rear apron to retain your factory backup camera and parking proximity sensors.
What is the difference between a Pickup Box Delete bed and a Cab & Chassis bed?
Pickup Box Delete models (7'0" and 8'6") fit standard factory pickup trucks where the sheet metal bed was removed, featuring a 38" wide frame with axle humps. Cab & Chassis beds (9'4" and 11'4") fit true commercial chassis cabs with flat, straight 34" wide frame rails and 60" or 84" Cab-to-Axle (CA) measurements.
Does the Legend X Titan come with a gooseneck hitch standard?
Yes. Every Titan bed comes equipped from the factory with a standard B&W Turnoverball gooseneck hitch rated at 30,000 lbs. It sits completely flush when inverted, leaving your center floor area wide open for tools or pallets.
Can I order a custom color to match my truck?
High-Gloss Black is our standard, primary stocked finish across all locations. Custom paint-to-match finishes are available via Custom Order only. Because custom paint runs require factory scheduling, please call our sales team to verify exact color matching and build lead times.
Why does Legend X use structural steel channel instead of roll-formed steel?
Solid 4" structural steel channel frame rails provide far superior torsional strength, deck sag resistance, and internal rust defense compared to cheaper, thinner roll-formed steel runners that can twist under heavy loads.
Where can I get a Titan Service Body installed?
We offer professional in-house installations at all three Riverside Trailers service locations in Blackfoot, Jerome, and Caldwell, ID. Visit www.riversidetrailers.com to contact your nearest branch or schedule an upfit appointment.
Product Specifications
Warranty Information
Legend X Truck Beds Factory Warranty
Legend X provides a limited warranty to the original retail purchaser of a new Legend X truck bed, ensuring your investment is backed by dependable commercial coverage. The following protection applies to new Legend X flatbeds and service bodies:
- 3-Year or 36,000-Mile Structural Coverage: Covers defects in materials or workmanship in the main structural frame, crossmembers, railings, and structural welds under normal use and within rated capacities. Coverage ends when either the time or mileage limit is reached.
- 1-Year Component Coverage: Covers defects in materials or workmanship in non-structural components manufactured by Legend X, including latches, hinges, and mounting brackets.
- 1-Year Paint and Finish Coverage: Applies when coating failure is caused by a manufacturing defect. Covered conditions include peeling, flaking, blistering, or rust forming underneath the coating in areas that were not damaged by external impacts or abrasion.
- Third-Party Components: Certain accessories and components—such as B&W turnover gooseneck hitches, KTI hydraulic pumps, and LED lights—carry separate warranties determined and provided directly by their respective original manufacturers.
*To utilize this coverage, issues must be reported to an authorized dealer within 10 days of discovery. Prior written authorization from Legend X is strictly required before any warranty repair work begins.
Dealership Warranty Disclaimer
Please Note: All warranties offered and outlined above are provided exclusively by the manufacturer and not by Riverside Trailers Jerome. Riverside Trailers Jerome acts solely as an authorized dealership and professional installation facility. All warranty claims, approvals, labor reimbursements, and coverages are subject strictly to the manufacturer's final discretion and official policies.
For complete details, full terms and conditions, or to review the claims process, please visit the manufacturer's official website:
