Product Description
Legend X Spartan Steel Flatbed
The ultimate open-platform hauler engineered for maximum deck configuration and heavy payload utility. Featuring perimeter rub rails with integrated stake pockets, 30K gooseneck towing, 24K Class V bumper receiver, and a heavy 4" structural steel channel backbone. Riverside Trailers provides complete drive-in, drive-out upfitting across our Blackfoot, Jerome, and Caldwell, ID service centers.
Explore Spartan FeaturesOpen-Platform Heavy Duty Architecture
Get an unskirted, high-clearance flatbed that leaves your chassis open for custom undermount toolboxes or specialized jobsite equipment. The Spartan combines maximum side-loading accessibility with uncompromised gooseneck and bumper towing capabilities.
Unskirted Deck Design
Maintain complete freedom for custom equipment mounting. The unskirted design reduces deadweight while leaving ample room for custom underbody toolboxes, hydraulic bale spike packages, or specialized vocational gear tailored to your exact fleet requirements.
Frame & Deck Specs
- Main Frame Rails: 4" Structural Steel Channel
- Crossmembers: 10-Gauge Formed Channel
- Deck Surface: 1/8" Heavy Diamond Treadplate
- Headache Rack: Integrated 3 1/2" Structural Tube design
- Finish: High-Gloss Black Powder Coat (Standard)
Tie-Down Cargo Control
Secure palleted freight, equipment, or agricultural loads with ease. Perimeter side rub rails with integrated heavy-duty stake pockets allow unlimited strapping angles and seamless drop-in side rail or board extension installs.
Cargo Control Details
- Side Rails: Heavy structural steel perimeter rub rails
- Stake Pockets: Standard 2" x 4" stake pocket spacing
- Loading Access: 360-degree forklift side-loading capability
- Option: Removable or fold-down side rail kits available
- Option: Headboard-mounted chain and strap toolboxes
Dual-Tier Towing
Pull heavy goosenecks or bumper-pull equipment with total confidence. Comes factory-equipped with a flush-mount 30,000 lb. B&W Turnoverball gooseneck hitch and an integrated 24,000 lb. Class V 2.5" bumper receiver hitch.
Towing Ratings & Wiring
- Gooseneck Hitch: Standard B&W Turnoverball (30,000 lb. Rated)
- Bumper Receiver: Integrated 2.5" Class V Receiver (24,000 lb. Rated)
- Electrical Plugs: Dual 7-way round plugs (Tailboard & Gooseneck well)
- Wiring Harness: Modular corrosion-resistant sealed harness
Spartan Sizing & Chassis Fitment Guide
To guarantee a flush fit, flatbed dimensions must match your truck's specific Cab-to-Axle (CA) measurement and rear-wheel configuration (Single Rear Wheel vs. Dual Rear Wheel).
| Bed Length | Cab-to-Axle (CA) | Wheel Config | Typical Vehicle Application |
|---|---|---|---|
| 7' 0" | 42" CA | SRW | Short Bed Pickup Box Delete (Single Rear Wheel) |
| 8' 6" | 56" – 58" CA | SRW or DRW | Long Bed Pickup Box Delete (Single or Dual Rear Wheel) |
| 9' 4" | 60" CA | DRW / Commercial | Standard Commercial Cab & Chassis Framework |
| 11' 4" | 84" CA | DRW / Commercial | Extended Commercial Cab & Chassis Framework |
*Fitment can be affected by truck generation, fuel tank configuration (single vs. dual), DEF filler neck routing, and factory safety sensors. Contact Riverside Trailers to verify exact VIN parameters across our Blackfoot, Jerome, or Caldwell locations.
Spartan Steel Flatbed Details
Examine the unskirted side profile, rub rails, stake pockets, flush gooseneck door, and heavy structural steel channel backbone up close.

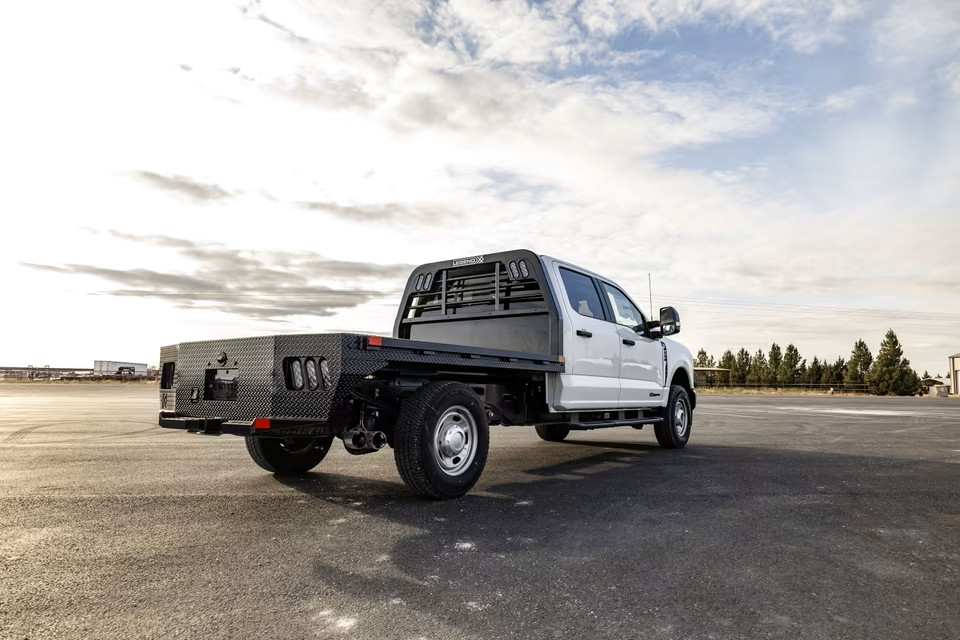

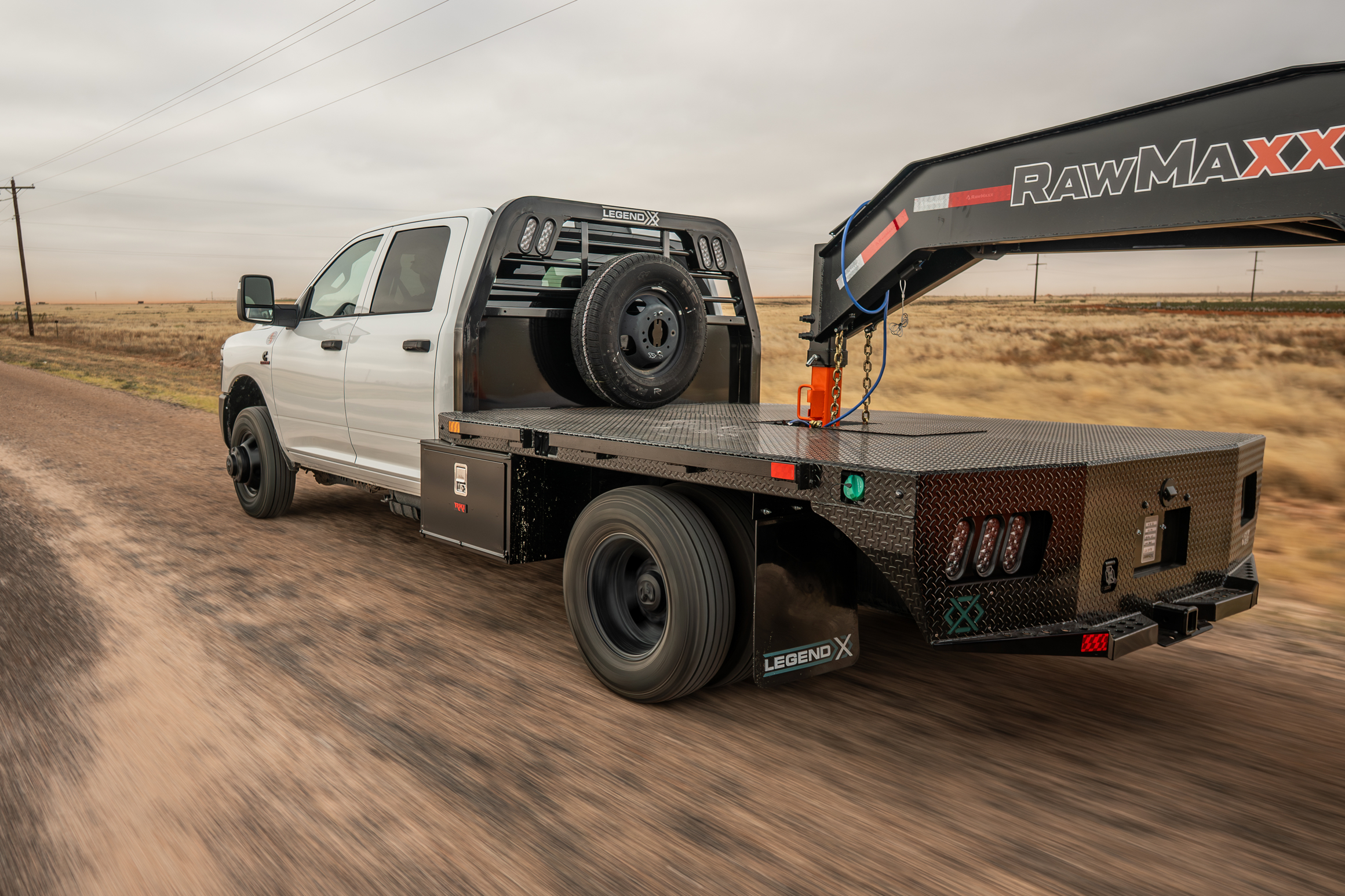

Open-Platform Profile
High-clearance unskirted frame ready for open cargo loading or custom underbody boxes.
Rub Rail & Stake Pockets
Full perimeter tie-down capability with standard 2" x 4" stake pocket spacing.

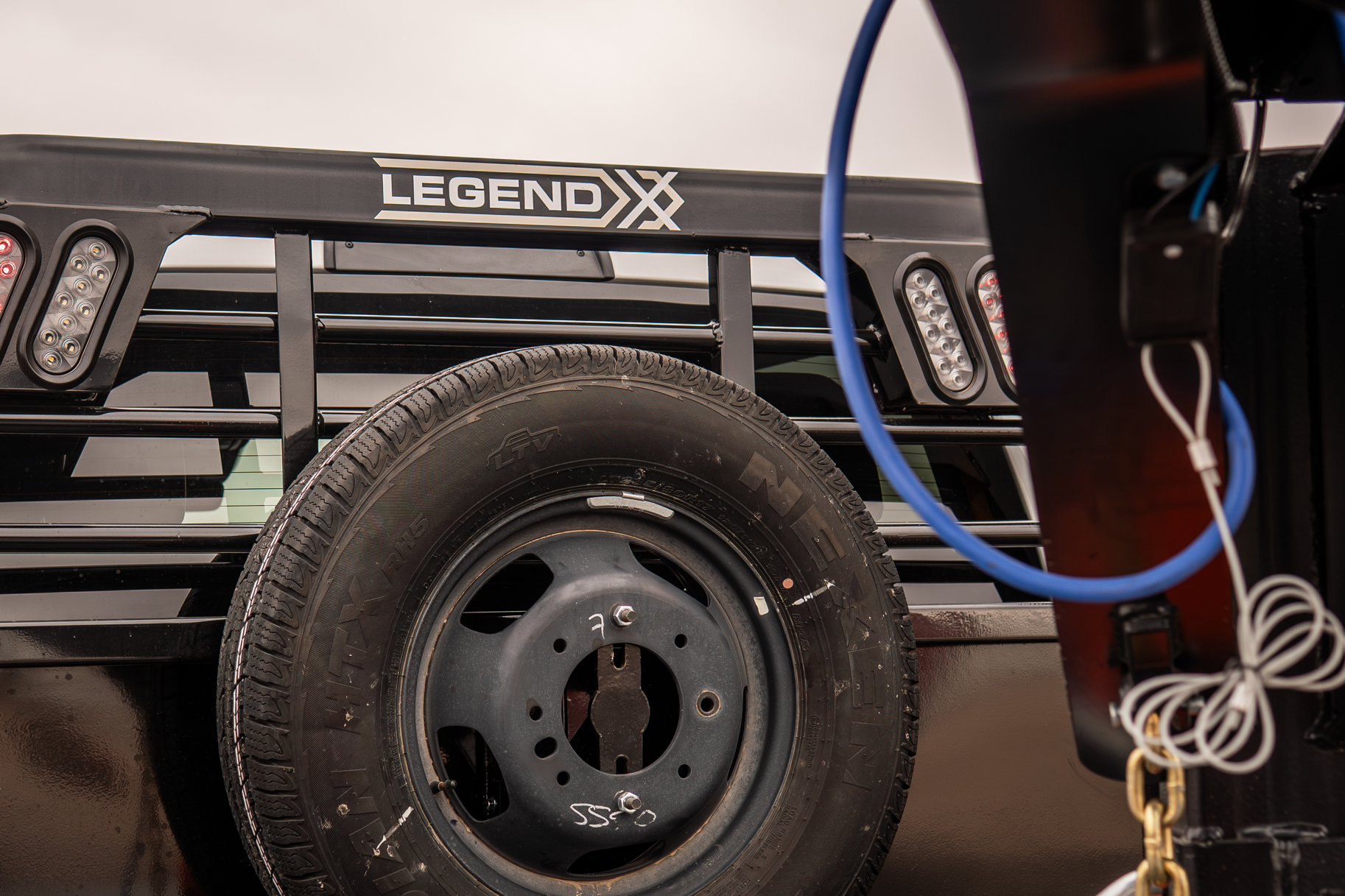

3 1/2" Tube Headache Rack
Heavy tube rack with integrated lighting and cab window protection.
1/8" Steel Treadplate Floor
High-strength diamond treadplate working floor protected by powder-coated finish.
Standard 30K Gooseneck
Factory-installed 30,000 lb. B&W Turnoverball that turns over flush when not in use.

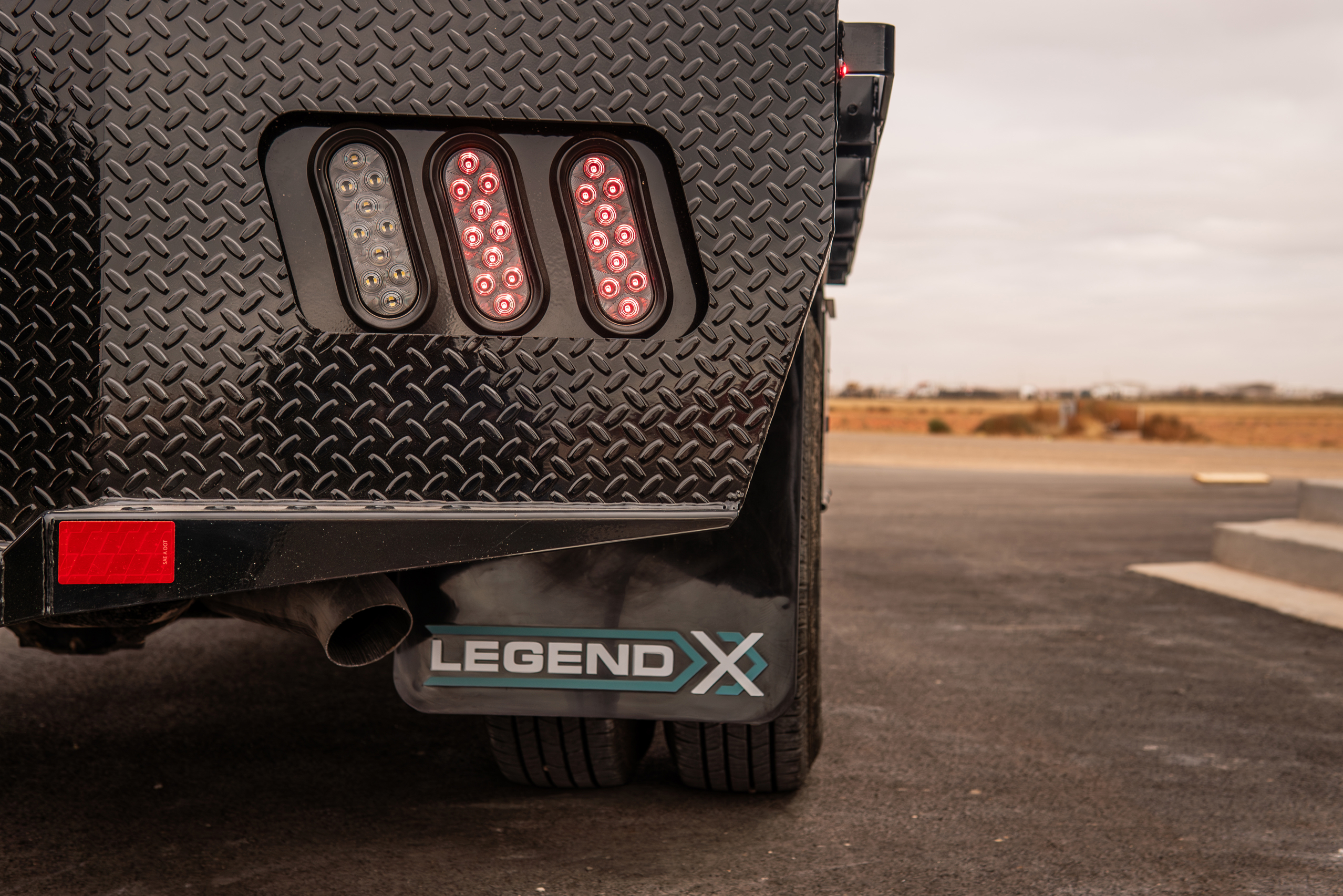

24,000 LB Bumper Hitch
Integrated Class V 2.5" receiver hitch with heavy safety chain loops and 7-way plug.

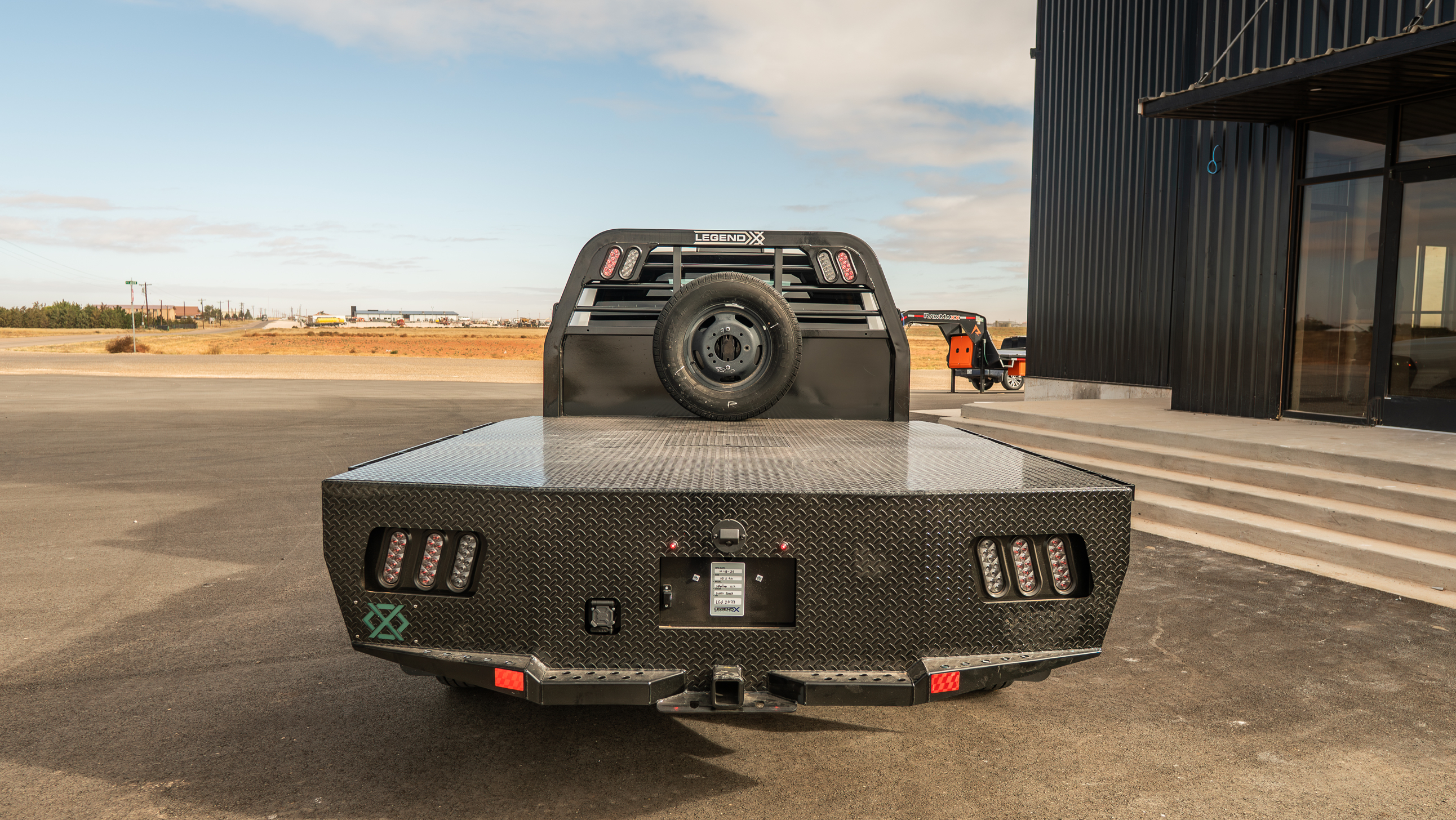

Professional Fleet Upfit
Complete drive-in, drive-out flatbed mounting available across all Riverside Trailers locations.
Professional In-House Installation
Modern trucks feature highly complex safety electronics, backup cameras, blind-spot radar, and intricate emissions systems. Across our Riverside Trailers installation facilities in Blackfoot, Jerome, and Caldwell, ID, our dedicated service bays seamlessly manage upfit requirements including backup camera relocation, parking proximity sensor integration, and Diesel Exhaust Fluid (DEF) filler neck routing.
Our experienced technicians ensure your vehicle's safety features and powertrain systems remain 100% operational before your truck hits the road.
Schedule Upfit ServiceUpfit Compatibility Highlights
- ✓ Factory Backup Camera Relocation & Wire Harness Extension
- ✓ Parking Proximity Sensor Integration in Rear Apron
- ✓ Custom DEF Filler Neck Routing & Heat Shield Deflection
- ✓ Modular Sealed 7-Way Trailer Plug Connections
- ✓ Single & Dual Fuel Tank Filler Neck Alignment
Available Factory Options & Upgrades
Customize your Legend X Spartan bed to match your exact daily jobsite requirements.
Fold-Down Side Rails
Add heavy-duty hinged fold-down side rail kits to contain loose cargo, gravel, or equipment while maintaining flat-deck loading ease.
3/16" Treadplate Floor
Upgrade from the standard 1/8" deck to a heavy-duty 3/16" steel treadplate floor built for concentrated point loads.
Underbody Toolboxes
Equip weatherproof underbody poly or steel toolboxes under the unskirted frame rails for secure gear and strap storage.
Custom Color Match (Special Order)
High-Gloss Black powder coat is our primary stocked finish. Custom paint-to-match options are available as a Custom Order Only. Please call to verify exact color codes and build lead times.
Fitted Mudflap Kits
Heavy-duty rubber SRW and DRW fitted mudflaps to protect your chassis and trailing cargo from highway debris.
Frequently Asked Questions
What makes the Spartan different from skirted flatbeds like the Viking?
The Spartan is an unskirted, open-platform flatbed featuring perimeter rub rails and stake pockets. This drops dead weight and leaves the underbody open, giving you maximum flexibility to add custom undermount toolboxes or specialty equipment. Skirted beds like the Viking incorporate built-in, flush underbody toolboxes with smooth side body skirts.
Can I add side rails to the Spartan flatbed?
Yes. You can drop standard 2x4 lumber or custom rack stakes directly into the perimeter stake pockets, or upfit heavy-duty hinged fold-down side rail kits that lock upright during transit and fold flat for forklift side-loading.
Are Spartan beds compatible with factory backup cameras and parking sensors?
Yes. When installed at any Riverside Trailers service bay (Blackfoot, Jerome, or Caldwell), our service technicians utilize camera relocation harnesses and drill precise mounting ports in the rear apron to retain your factory backup camera and parking proximity sensors.
Does the Legend X Spartan come with a gooseneck hitch standard?
Yes. Every Spartan bed comes equipped from the factory with a standard B&W Turnoverball gooseneck hitch rated at 30,000 lbs. It sits completely flush when inverted, leaving your center floor area wide open for gear or cargo.
Can I order a custom color to match my truck?
High-Gloss Black is our standard, primary stocked finish across all locations. Custom paint-to-match finishes are available via Custom Order only. Because custom paint runs require factory scheduling, please call our sales team to verify exact color matching and build lead times.
Why does Legend X use structural steel channel instead of roll-formed steel?
Solid 4" structural steel channel frame rails provide far superior torsional strength, deck sag resistance, and internal rust defense compared to cheaper, thinner roll-formed steel runners that can twist under heavy loads.
Where can I get a Spartan Steel Flatbed installed?
We offer professional in-house installations at all three Riverside Trailers service locations in Blackfoot, Jerome, and Caldwell, ID. Visit www.riversidetrailers.com to contact your nearest branch or schedule an upfit appointment.
Product Specifications
Warranty Information
Legend X Truck Beds Factory Warranty
Legend X provides a limited warranty to the original retail purchaser of a new Legend X truck bed, ensuring your investment is backed by dependable commercial coverage. The following protection applies to new Legend X flatbeds and service bodies:
- 3-Year or 36,000-Mile Structural Coverage: Covers defects in materials or workmanship in the main structural frame, crossmembers, railings, and structural welds under normal use and within rated capacities. Coverage ends when either the time or mileage limit is reached.
- 1-Year Component Coverage: Covers defects in materials or workmanship in non-structural components manufactured by Legend X, including latches, hinges, and mounting brackets.
- 1-Year Paint and Finish Coverage: Applies when coating failure is caused by a manufacturing defect. Covered conditions include peeling, flaking, blistering, or rust forming underneath the coating in areas that were not damaged by external impacts or abrasion.
- Third-Party Components: Certain accessories and components—such as B&W turnover gooseneck hitches, KTI hydraulic pumps, and LED lights—carry separate warranties determined and provided directly by their respective original manufacturers.
*To utilize this coverage, issues must be reported to an authorized dealer within 10 days of discovery. Prior written authorization from Legend X is strictly required before any warranty repair work begins.
Dealership Warranty Disclaimer
Please Note: All warranties offered and outlined above are provided exclusively by the manufacturer and not by Riverside Trailers Jerome. Riverside Trailers Jerome acts solely as an authorized dealership and professional installation facility. All warranty claims, approvals, labor reimbursements, and coverages are subject strictly to the manufacturer's final discretion and official policies.
For complete details, full terms and conditions, or to review the claims process, please visit the manufacturer's official website:
