PJ Trailers | D5 60" Utility Dump Trailer
A Compact Trailer with Serious Hauling Power
You need the 60" Utility Dump Trailer (D5) when tight spaces demand a compact trailer with serious hauling power. Outfitted with the same conveniences that bigger dump trailers have, the D5 is designed to help you get in and around tight spaces to effectively transport, haul, and dump lighter loads. From mulch and dirt to gravel, it’s an accessible entry-level dump trailer that’s perfect for homeowners, farmers, and even small-scale commercial operations. Partnered with Riverside Trailers—a trusted, family-owned legacy brand serving agricultural and commercial communities since 1968—the D5 model ensures your tough jobs get done right.
Target Market & Popular Uses
The D5 Dump Trailer is strategically designed to meet the rigorous demands of multiple demographics:
- Homeowners & Residential Management: Scaled perfectly for weekend DIY projects, allowing easy maneuverability in tight driveways without sacrificing hauling power.
- Farmers & Independent Ag Operators: Perfect for moving feed, clearing branches, transporting manure, or property maintenance.
- Small-Scale Commercial Operations: Ideal for landscapers and contractors needing a durable, compact trailer for soil, aggregate, and job site debris.
Core Engineering & Selling Features
- Diamond Plate Fenders: Built to withstand heavy loads and harsh environments, ensuring long-lasting durability on and off the job site.
- Hydraulic Scissor Lift System: A self-contained, reliable hydraulic unit that delivers robust power up and power down mechanics for quick material dumping.
- Front-Locking Secure Toolbox: Protects your self-contained hydraulic power unit from the elements while offering secure, lockable storage for your trailering equipment and tie-down gear.
- Demco EZ Latch Coupler: Standardized for Bumper Pull operations, offering industry-leading drop-on convenience and unyielding security.
Standard Specifications
- GVWR: 5,200 lbs. (Bumperpull)
- Empty Weight: 1,800 lbs. (8' Model) / 1,940 lbs. (10' Model)
- Bed Dimensions: 60" Width | 8' or 10' Length
- Axles: (1) 5,200# Electric / Spring Axle
- Suspension: 5-Leaf Double Eye Suspension
- Coupler: BP 2" A-Frame Demco EZ Latch Coupler
- Wiring: All-Weather Wiring Harness with 7-way RV Blade Plug
- Jack: Top Wind Drop Leg Jack (8,000 lb.)
- Frame & Tongue: 4" Channel Frame & 4" Channel Tongue
- Crossmembers: 3" Channel on 16" Centers
- Flooring & Sides: 10ga. Steel Bed & 18" 10ga. Steel Sides
- Fenders: 1/8" Treadplate Steel Fenders
- Hydraulics: Power Up / Power Down & Gravity Down
- Lift Cylinder: 3" x 30" Single Push Cylinder
- Tailgate: Barn Door Gate (Split Gate)
- Tires: ST225/75R15 Radial Tires 8-ply (2,540 lbs.)
- Power System: 12V Deep Cycle Battery with 110V Integrated Trickle Charger
- Safety: Electric Breakaway System with Charger
- Paint: Primer + Black Powder Coat
- Tie-Downs: (4) D-Rings (Welded inside the Box)
- Tarp Prep: Roll-up Tarp Kit (Pull Bar) 7' x 20'
Available Factory Options & Upgrades
Customize your D5 to match your exact utility requirements using our dropdown configurator.
- Axle & Tire Upgrades: Dual (2) 3,500# Axles, (2) 5,200# Axles, or upgrade to 235/80 R16 tires.
- Coupler Options: BP 2-5/16" A-Frame or BP 2-5/16" Adjustable.
- Gate System: 2-Way Gate System (Split / Spreader Gate) for maximum dumping flexibility.
- Chassis & Structure: 12" OC Crossmembers for heavy impact loads.
- Wall Extensions: 18" Side Extensions (Solid) to boost volume for light materials.
- Power & Charging: Solar Battery Charger upgrade.
- Utility & Ramps: Slide-in loading ramps.
- Cargo Control: 1 Extra Pair of welded D-Rings.
- Custom Powder Coat Colors: Red, White, Tractor Orange, Grey, Desert Tan, Jet Blue, Industrial Green, Industrial Yellow, and Slime Green.
Outfit Your Fleet with Riverside Trailers
With an industry-leading commitment to commercial tradesmen and agricultural operators, Riverside Boot and Saddle and both Riverside Trailers locations provides seamless outfitting, transparent quotes, and unmatched service support. Build your exact PJ D5 Dump Trailer using the options above and request your custom quote today.

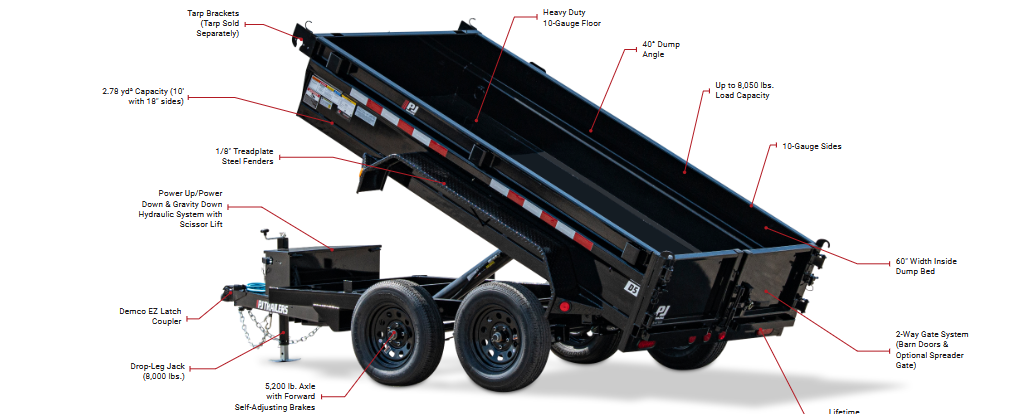

D5 60" Utility Dump
A Compact Trailer with Serious Hauling Power
PJ TRAILERS
Key Specifications
- Inside Bed Width: 60"
- Length: 8', 10'
- GVWR: 5,200 - 9,900 lbs.
- Deck Height: 26"
Capacities & Configuration
- Couplers: Bumper Pull
- Load Capacity: 3,400 - 8,050 lbs.
- Cargo Capacity: 2.2 - 2.8 yd³
- Axles: Single (1 x 5,200 lbs.) or Tandem (2 x 5,200 lbs.)
Standard Build
- Dump Sides Height: 18"
- Dump Angle: 40°
- Capacity Example: 2.78 yd³ Capacity (10' with 18" sides)
- Versatility: Choose the optional Dump Tarp Kit for easy and convenient load covering.
Standard Configuration Specs
Power Up/Power Down & Gravity Down
The Self-Contained Hydraulic Unit provides reliable power for your dump trailer, with standard power up/power down and gravity down operation to maximize dump cycles.
Diamond Plate Fenders
The Diamond Plate Fenders are built to last, providing excellent strength and durability against heavy loads, harsh weather, and rough terrain.
2-Way Gate System (Optional)
Enhance your trailer's versatility with our optional 2-Way Gate System, which combines the functionality of a barn door and spreader. This feature allows for maximum load dumping flexibility.
Demco EZ Latch Coupler
With the Demco EZ Latch Coupler's easy and secure design, you won't have to fumble with complicated locking mechanisms or struggle to connect your trailer to your vehicle. Just drop and go!
Frequently Asked Questions
Where is the best place to store the D5 dump trailer when not in use?
Keep your trailer in a dry, covered spot to protect the powder-coated finish and hydraulic system. Use a fitted tarp for a simple solution that helps preserve our products and keeps them ready for the next job.
What are the most common uses for the D5 dump trailer?
You’ll find this model perfect for hauling mulch, gravel, or dirt around your property. Farmers rely on it for moving feed or debris, while small businesses use it to transport landscaping materials. Its compact size makes maneuvering in tight driveways or job sites easy without sacrificing hauling power.
How does the D5 compare to larger dump trailers?
The D5 shares many of the same features you’d expect in bigger models — such as a reliable hydraulic lift and strong steel bed — but its smaller frame allows for greater control. This makes it ideal when space is limited.
Why is the D5 great for weekend DIY projects?
If you’re clearing branches, spreading soil for a garden, or tackling home renovations, this trailer makes loading and dumping quick and efficient. It saves you effort and gives you more time to focus on the project.
What makes the D5 a smart investment for long-term use?
With a heavy-duty frame, corrosion-resistant finish, and dependable hydraulics, this trailer is built to last. Our company is a trusted supplier and seller, supported by knowledgeable sales teams ready to assist you.
